FT-101B: AF Unit BOM

This is a series of articles about my Yaesu FT-101B

For this I used the serviceimanual available at Fox Tango International My unit is from May 1974. I’ve used these lists restoring it. I hope it will be useful for someone else; it was helpful to me.

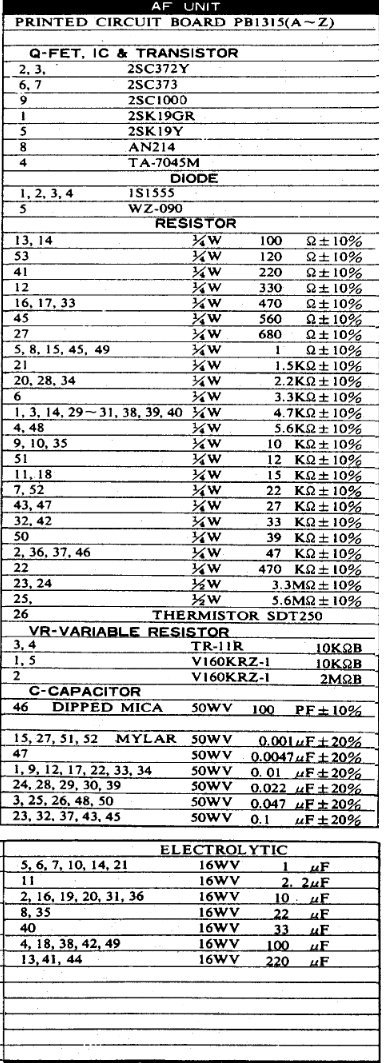

In each case I include the image I used for OCR, in case there are errors. If you find any error or omission, I would appreciate it if you let me know at lu2dfm-gmail.com.

Note: this information was obtained from public documentation; any errors or omissions are unintentional. Please verify any data you obtain here and use it at your own risk.

Components of section.

PCB: PB-1315(A-Z)

Component	PN		Value	Unit	Tol.	Rating
Resistor	13, 14	resistor	100	Ω	±10%	1/4w
Resistor	53	resistor	120	Ω	±10%	1/4w
Resistor	41	resistor	220	Ω	±10%	1/4w
Resistor	12	resistor	330	Ω	±10%	1/4w
Resistor	16, 17, 33	resistor	470	Ω	±10%	1/4w
Resistor	45	resistor	560	Ω	±10%	1/4w
Resistor	27	resistor	680	Ω	±10%	1/4w
Resistor	5, 8, 15, 45, 49	resistor	1	kΩ	±10%	1/4w
Resistor	21	resistor	1.5	kΩ	±10%	1/4w
Resistor	20, 28, 34	resistor	2.2	kΩ	±10%	1/4w
Resistor	6	resistor	3.3	kΩ	±10%	1/4w
Resistor	1, 3, 14, 29-31, 38, 39, 40	resistor	4.7	kΩ	±10%	1/4w
Resistor	4, 48	resistor	5.6	kΩ	±10%	1/4w
Resistor	9, 10, 35	resistor	10	kΩ	±10%	1/4w
Resistor	51	resistor	12	kΩ	±10%	1/4w
Resistor	11, 18	resistor	15	kΩ	±10%	1/4w
Resistor	7, 52	resistor	22	kΩ	±10%	1/4w
Resistor	43, 47	resistor	27	kΩ	±10%	1/4w
Resistor	32, 42	resistor	33	kΩ	±10%	1/4w
Resistor	50	resistor	39	kΩ	±10%	1/4w
Resistor	2, 36, 37, 46	resistor	47	kΩ	±10%	1/4w
Resistor	22	resistor	470	kΩ	±10%	1/4w
Resistor	23, 24	resistor	1.3	MΩ	±10%	1/4w
Resistor	25	resistor	3.6	MΩ	±10%	1/4w
Resistor	26	thermistor
Capacitor	46	dipped mica	100	pf	±10%	500v
Capacitor	15, 27, 31, 52	mylar	0.001	μf	±20%	500v
Capacitor	4	mylar	0.0047	μf	±20%	500v
Capacitor	1, 9, 12, 17, 22, 33, 34	mylar	0.01	μf	±20%	500v
Capacitor	24, 28, 29, 30, 39	mylar	0.022	μf	±20%	500v
Capacitor	3, 25, 26, 48, 50	mylar	0.047	μf	±20%	500v
Capacitor	23, 32, 37, 43, 45	mylar	0.1	μf	±20%	500v
Capacitor	5, 6, 7, 10, 14, 21	electrolytic	1	μf		16v
Capacitor	11	electrolytic	2.2	μf		16v
Capacitor	2, 16, 19, 20, 31, 36	electrolytic	10	μf		16v
Capacitor	8, 35	electrolytic	22	μf		16v
Capacitor	40	electrolytic	33	μf		16v
Capacitor	4, 18, 38, 42, 49	electrolytic	100	μf		16v
Capacitor	13, 41, 44	electrolytic	220	μf		16v
Variable Resistor	3, 4	vr-variable resistor	10	kΩ		tr-11r
Variable Resistor	1, 5	vr-variable resistor	1	MΩ		v160krz-1
Variable Resistor	2	vr-variable resistor	2	MΩ		v160krz-1
