FT-101B: Poli caps
Bill of materials for the VFO (Variable Frequency Oscillator) unit of the Yaesu FT-101B

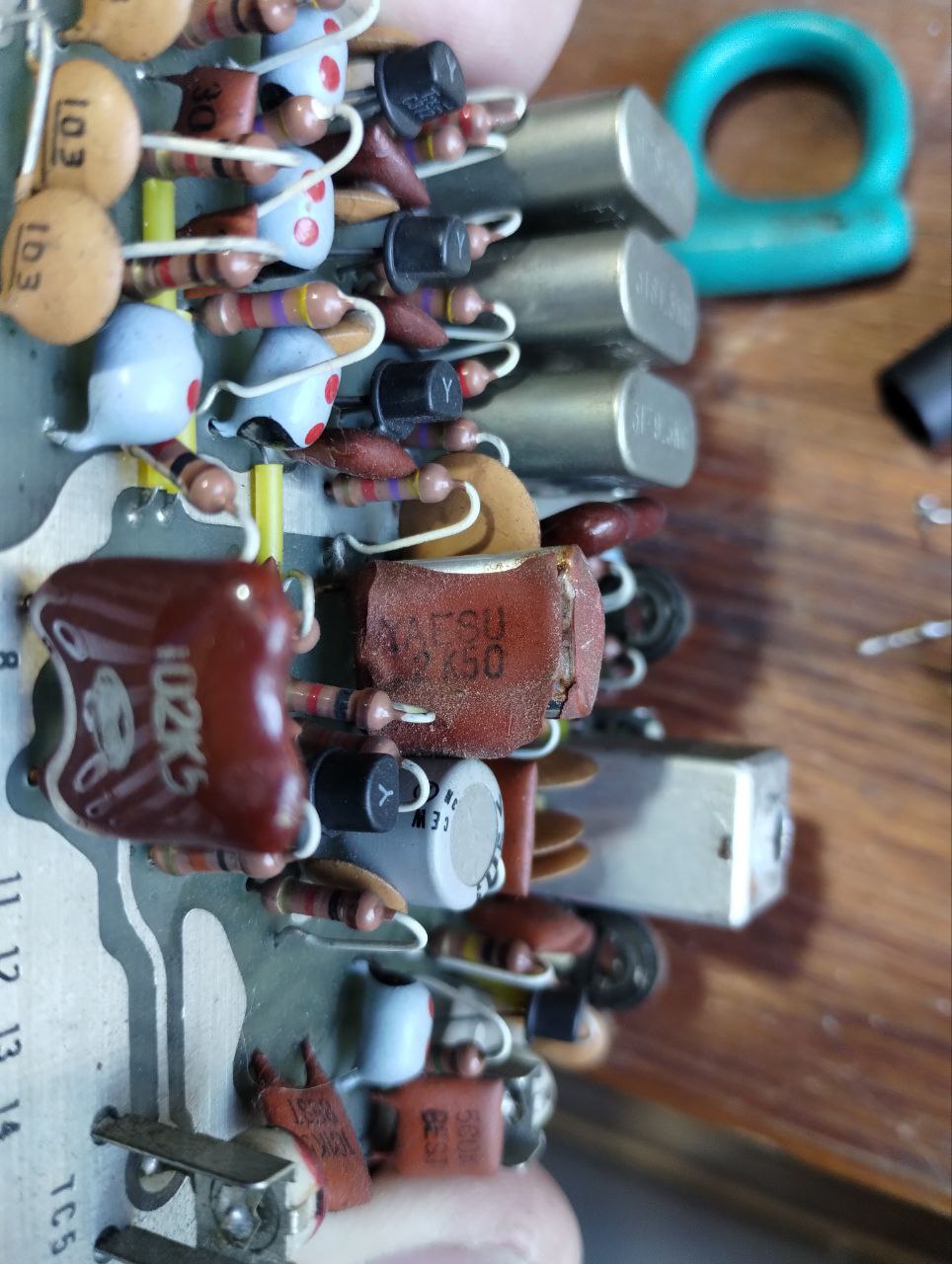

The original capacitors are in bad condition, although they work, the wrapping is completely
deteriorated. These are the capacitors that appear in the component listings as "plastic film".
Consolidated List by Values
| Value | Minimum Voltage | Total Quantity | Origin Modules |
|---|---|---|---|
| 0.001 µF | 500V | 16 units | AF, REG_CAL, MIXER |
| 0.0022 µF | 100V | 10 units | CHASSIS |
| 0.0047 µF | 500V | 2 units | CHASSIS, AF |
| 0.01 µF | 500V | 8 units | CHASSIS, AF, IF |
| 0.022 µF | 500V | 6 units | CHASSIS, AF |
| 0.047 µF | 500V | 7 units | CHASSIS, AF, RECT |
| 0.1 µF | 500V | 6 units | CHASSIS, AF, REG_CAL |
| 0.22 µF | 100V | 2 units | CHASSIS, OSC |
| 0.47 µF | 100V | 2 units | CHASSIS, IF |
| 1 µF | 100V | 1 unit | CHASSIS |
No hay datos de componentes disponibles para esta unidad: capacitores
