FT-101B: IF Unit BOM
Bill of materials for the Intermediate Frequency (IF) unit of the Yaesu FT-101B
Components of section.

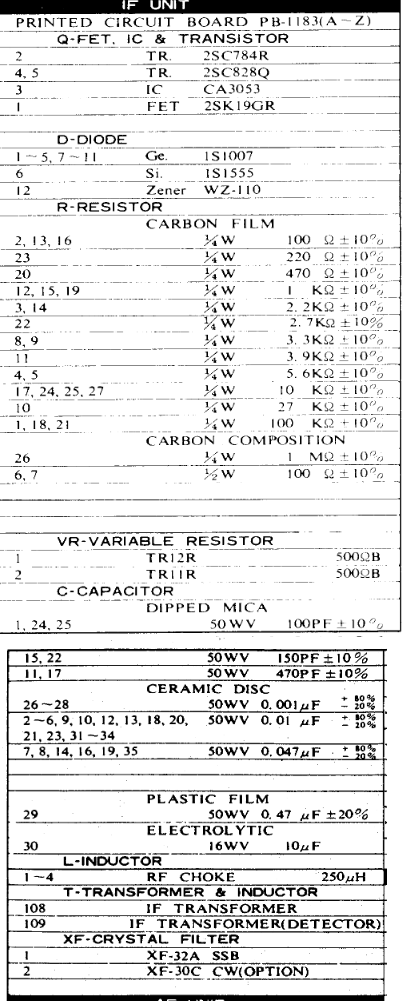

Manual view, IF section (PB-1183(A-Z))
PCB: PB-1183(A-Z)
| Component | PN | Value | Unit | Tol. | Rating | |
|---|---|---|---|---|---|---|
| Resistor | 2, 13, 16 | carbon film | 100 | Ω | ±10% | 1/4W |
| Resistor | 23 | carbon film | 220 | Ω | ±10% | 1/4W |
| Resistor | 20 | carbon film | 470 | Ω | ±10% | 1/4W |
| Resistor | 12, 15, 19 | carbon film | 1 | kΩ | ±10% | 1/4W |
| Resistor | 3, 14 | carbon film | 2.2 | kΩ | ±10% | 1/4W |
| Resistor | 22 | carbon film | 2.7 | kΩ | ±10% | 1/4W |
| Resistor | 8, 9 | carbon film | 3.3 | kΩ | ±10% | 1/4W |
| Resistor | 11 | carbon film | 3.9 | kΩ | ±10% | 1/4W |
| Resistor | 4, 5 | carbon film | 5.6 | kΩ | ±10% | 1/4W |
| Resistor | 17, 24, 25, 27 | carbon film | 10 | kΩ | ±10% | 1/4W |
| Resistor | 10 | carbon film | 27 | kΩ | ±10% | 1/4W |
| Resistor | 1, 18, 21 | carbon film | 100 | kΩ | ±10% | 1/4W |
| Resistor | 26 | carbon composition | 1 | MΩ | ±10% | 1/4W |
| Resistor | 6, 7 | carbon composition | 100 | Ω | ±10% | 1/2W |
| Capacitor | 15, 22 | ceramic disc | 150 | pF | ±10% | 50V |
| Capacitor | 11, 17 | ceramic disc | 470 | pF | ±10% | 50V |
| Capacitor | 26–28 | ceramic disc | 0.001 | μF | ±20% | 50V |
| Capacitor | 2–6, 9, 10, 12, 13, 18, 20, 21, 23, 31–34 | ceramic disc | 0.01 | μF | ±20% | 50V |
| Capacitor | 7, 8, 14, 16, 19, 35 | ceramic disc | 0.047 | μF | ±20% | 50V |
| Capacitor | 29 | plastic film | 0.47 | μF | ±20% | 50V |
| Capacitor | 30 | electrolytic | 10 | μF | 16V | |
| Variable Resistor | 1 | variable resistor | 500 | Ω | TR12R | |
| Variable Resistor | 2 | variable resistor | 500 | Ω | TR11R |
