FT-101B: MOD OSC Unit BOM

Bill of materials for the modulator and oscillator (MOD OSC) unit of the Yaesu FT-101B

Radio
🌍 Translations: ES, PT-BR
Components of section.

PCB: 1184(A-Z)

Component PN Value Unit Tol. Rating
Resistor 18 carbon film 100 Ω ±10% 1/4W
Resistor 1, 3 carbon film 150 Ω ±10% 1/4W
Resistor 19 carbon film 180 Ω ±10% 1/4W
Resistor 2, 21, 30 carbon film 470 Ω ±10% 1/4W
Resistor 9–11, 14, 24, 28 carbon film 1 kΩ ±10% 1/4W
Resistor 20 carbon film 1.5 kΩ ±10% 1/4W
Resistor 6, 8 carbon film 2.7 kΩ ±10% 1/4W
Resistor 12, 15, 16, 22, 25, 26, 29 carbon film 4.7 kΩ ±10% 1/4W
Resistor 32 carbon film 10 kΩ ±10% 1/4W
Resistor 33 carbon film 15 kΩ ±10% 1/4W
Resistor 13, 17, 23, 27 carbon film 22 kΩ ±10% 1/4W
Resistor 7 carbon film 33 kΩ ±10% 1/4W
Resistor 4 carbon film 100 kΩ ±10% 1/4W
Capacitor 20, 28, 30 dipped mica 30 pF ±10% 50V
Capacitor 19, 27, 32 dipped mica 40 pF ±10% 50V
Capacitor 38 dipped mica 50 pF ±10% 50V
Capacitor 5, 10, 37 dipped mica 100 pF ±10% 50V
Capacitor 4 dipped mica 150 pF ±10% 50V
Capacitor 31 ceramic disc 0.001 μF ±20% 50V
Capacitor 2, 8, 9, 13, 17, 18, 24 ceramic disc 0.01 μF ±20% 50V
Capacitor 26, 29, 33 ceramic disc 0.01 μF ±20% 50V
Capacitor 6, 11, 22, 25, 34 ceramic disc 0.047 μF ±20% 50V
Capacitor 12 plastic film 0.22 μF ±20% 50V
Capacitor 15 electrolytic 100 μF 16V
Variable Resistor 1 variable resistor 500 Ω TR11R
Variable Resistor 2 variable resistor 5 kΩ TR11R
Trimmer Capacitor 2–4 ceramic 20 pF ECV1ZW20P40
Trimmer Capacitor 1, 5, 6 ceramic 50 pF ECV1ZW50P40
Inductor 1–3, 5 rf choke 10 μH
Inductor 4, 6, 7 rf choke 22 μH
Inductor 8, 9 rf choke 250 μH

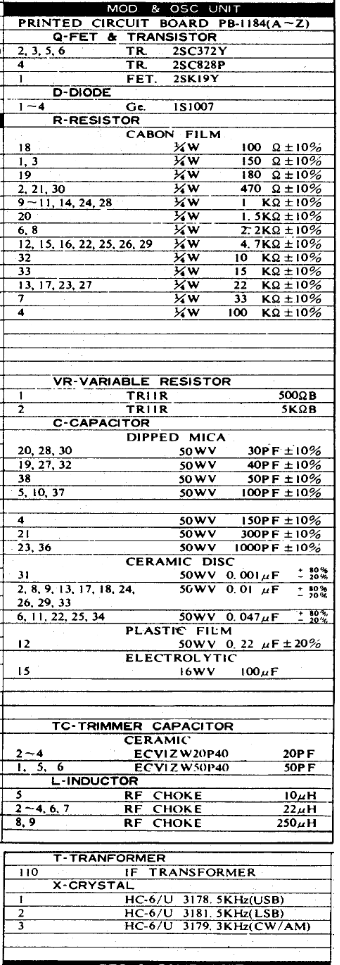

MOD OSC Unit
Manual view, MOD OSC section (PB-1184(A-Z))
