FT-101B: RECT Unit BOM
Bill of materials for the rectifier (RECT) unit of the Yaesu FT-101B
Components of section.

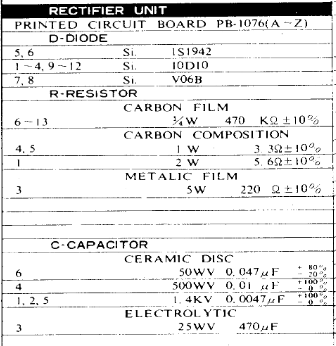

Manual view, RECT section (PB-1076(A-Z))
PCB: PB-1076(A-Z)
| Component | PN | Value | Unit | Tol. | Rating | |
|---|---|---|---|---|---|---|
| Resistor | 6–13 | carbon film | 470 | kΩ | ±10% | ¼W |
| Resistor | 4, 5 | carbon composition | 3.3 | kΩ | ±10% | 1W |
| Resistor | 1 | carbon composition | 5.6 | kΩ | ±10% | 2W |
| Resistor | 3 | metallic film | 220 | Ω | ±10% | 5W |
| Capacitor | 6 | ceramic disc | 0.047 | µF | ±20% | 50V |
| Capacitor | 4 | ceramic disc | 0.01 | µF | ±20% | 500V |
| Capacitor | 1, 2, 5 | ceramic disc | 0.0047 | µF | ±20% | 1.4KV |
| Capacitor | 3 | electrolytic | 470 | µF | ±20% | 25V |
