FT-101B: RF Unit BOM
Bill of materials for the RF (Radio Frequency) unit of the Yaesu FT-101B
Components of section.

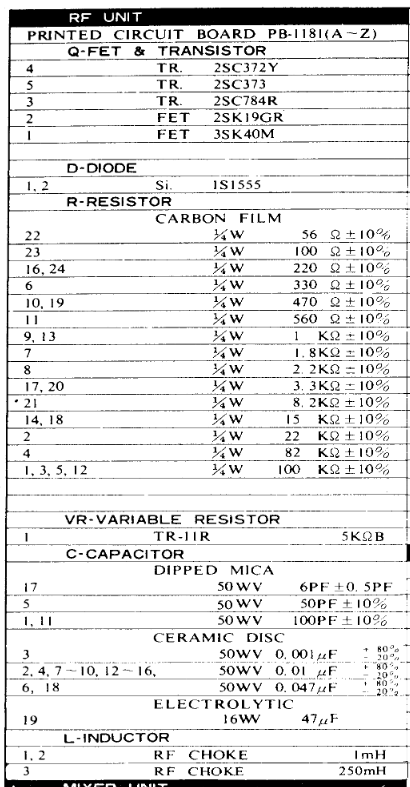

Manual view, RF section (PB-1181(A-Z))
PCB: PB-1181(A-Z)
| Component | PN | Value | Unit | Tol. | Rating | |
|---|---|---|---|---|---|---|
| Resistor | 22 | carbon film | 56 | Ω | ±10% | 1/4W |
| Resistor | 23 | carbon film | 100 | Ω | ±10% | 1/4W |
| Resistor | 16, 24 | carbon film | 220 | Ω | ±10% | 1/4W |
| Resistor | 6 | carbon film | 330 | Ω | ±10% | 1/4W |
| Resistor | 10, 19 | carbon film | 470 | Ω | ±10% | 1/4W |
| Resistor | 11 | carbon film | 560 | Ω | ±10% | 1/4W |
| Resistor | 9, 13 | carbon film | 1 | kΩ | ±10% | 1/4W |
| Resistor | 7 | carbon film | 1.8 | kΩ | ±10% | 1/4W |
| Resistor | 8 | carbon film | 2.2 | kΩ | ±10% | 1/4W |
| Resistor | 17, 20 | carbon film | 3.3 | kΩ | ±10% | 1/4W |
| Resistor | 21 | carbon film | 8.2 | kΩ | ±10% | 1/4W |
| Resistor | 14, 18 | carbon film | 15 | kΩ | ±10% | 1/4W |
| Resistor | 2 | carbon film | 22 | kΩ | ±10% | 1/4W |
| Resistor | 4 | carbon film | 82 | kΩ | ±10% | 1/4W |
| Resistor | 1, 3, 5, 12 | carbon film | 100 | kΩ | ±10% | 1/4W |
| Capacitor | 17 | dipped mica | 6 | pF | ±0.5pF | 50V |
| Capacitor | 5 | dipped mica | 50 | pF | ±10% | 50V |
| Capacitor | 1, 11 | dipped mica | 100 | pF | ±10% | 50V |
| Capacitor | 3 | ceramic disc | 0.001 | μF | ±20% | 50V |
| Capacitor | 2, 4, 7–10, 12–16 | ceramic disc | 0.01 | μF | ±20% | 50V |
| Capacitor | 6, 18 | ceramic disc | 0.047 | μF | ±20% | 50V |
| Capacitor | 19 | electrolytic | 47 | μF | 16V |
