FT-101B: VFO Unit BOM
Bill of materials for the VFO (Variable Frequency Oscillator) unit of the Yaesu FT-101B
Components of section.

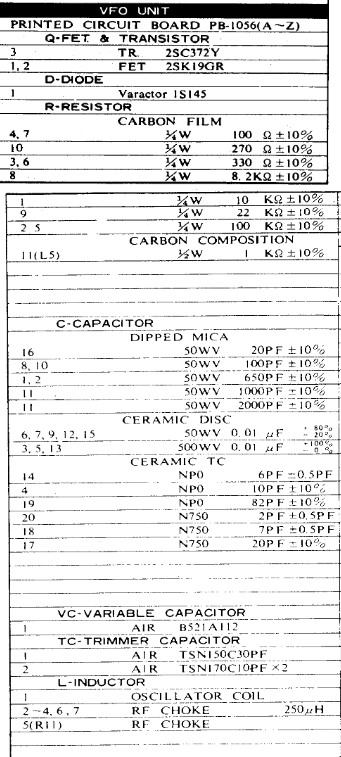

Manual view, VFO section (PB-1056(A-Z))
PCB: PB-1056(A-Z)
| Component | PN | Value | Unit | Tol. | Rating | |
|---|---|---|---|---|---|---|
| Transistor/FET | 3 | transistor | 2SC372Y | |||
| Transistor/FET | 1, 2 | fet | 2SK19GR | |||
| Resistor | 4, 7 | carbon film | 100 | Ω | ±10% | ¼W |
| Resistor | 3 | carbon film | 270 | Ω | ±10% | ¼W |
| Resistor | 3, 6 | carbon film | 330 | Ω | ±10% | ¼W |
| Resistor | 8 | carbon film | 8.2 | kΩ | ±10% | ¼W |
| Resistor | 9 | carbon film | 10 | kΩ | ±10% | ¼W |
| Resistor | 1 | carbon film | 22 | kΩ | ±10% | ¼W |
| Resistor | 2, 5 | carbon film | 100 | kΩ | ±10% | ½W |
| Resistor | 11 (L5) | carbon composition | 1 | kΩ | ±10% | ½W |
| Capacitor | 16 | dipped mica | 20 | pF | ±10% | 50V |
| Capacitor | 8, 10 | dipped mica | 100 | pF | ±10% | 50V |
| Capacitor | 1, 2 | dipped mica | 650 | pF | ±10% | 50V |
| Capacitor | 11 | dipped mica | 1000 | pF | ±10% | 50V |
| Capacitor | 6, 7, 9, 12, 15 | ceramic disc | 0.01 | μF | ±20% | 50V |
| Capacitor | 3, 5, 13 | ceramic disc | 0.01 | μF | ±10% | 500V |
| Capacitor | 14 | ceramic tc | 6 | pF | ±0.5PF | |
| Capacitor | 19 | ceramic tc | 10 | pF | ±10% | |
| Capacitor | 20 | ceramic tc | 82 | pF | ±10% | |
| Capacitor | 17 | ceramic tc | 2 | pF | ±0.5PF | |
| Capacitor | 18 | ceramic tc | 27 | pF | ±0.5PF | |
| Capacitor | 21 | ceramic tc | 20 | pF | ±10% | |
| Trimmer Capacitor | 2 | air | 30 | pF | C123A129 | |
| Inductor | 2-4, 6, 7 | rf choke | 250 | μH | ||
| Inductor | 5(R11) | rf choke |
