FT-101B: AF Unit BOM
Lista de componentes de la unidad de Audio Frecuencia (AF) del Yaesu FT-101B
Esta es una serie de artículos sobre mi Yaesu FT-101B
Para esto usé el service manual que está en Fox Tango International Mi ejemplar es de mayo 1974. Usé estas listas para la restauración. Espero sea útil para alguien más, a mí me vino bien.

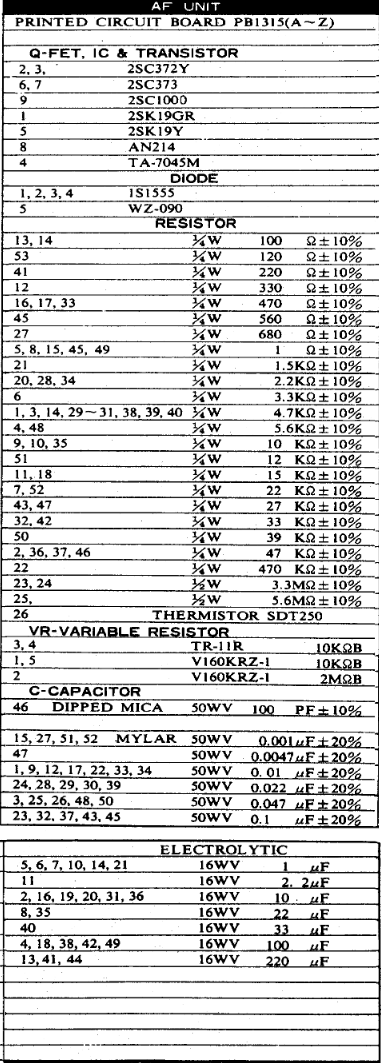

Dejo en cada caso la imagen que usé para el OCR, por si hay errores. Si Ud. encuentra algún error u omisión le agradezco me lo comunique a lu2dfm-gmail.com.
Nota: esta información fue obtenida de documentación pública; cualquier error u omisión es involuntaria. Verifique cualquier dato que aquí obtenga y úselo bajo su propia cuenta y riesgo.
Componentes de la sección.
PCB: PB-1315(A-Z)
| Componente | PN | Valor | Unidad | Tol. | Rating | |
|---|---|---|---|---|---|---|
| Resistor | 13, 14 | resistor | 100 | Ω | ±10% | 1/4w |
| Resistor | 53 | resistor | 120 | Ω | ±10% | 1/4w |
| Resistor | 41 | resistor | 220 | Ω | ±10% | 1/4w |
| Resistor | 12 | resistor | 330 | Ω | ±10% | 1/4w |
| Resistor | 16, 17, 33 | resistor | 470 | Ω | ±10% | 1/4w |
| Resistor | 45 | resistor | 560 | Ω | ±10% | 1/4w |
| Resistor | 27 | resistor | 680 | Ω | ±10% | 1/4w |
| Resistor | 5, 8, 15, 45, 49 | resistor | 1 | kΩ | ±10% | 1/4w |
| Resistor | 21 | resistor | 1.5 | kΩ | ±10% | 1/4w |
| Resistor | 20, 28, 34 | resistor | 2.2 | kΩ | ±10% | 1/4w |
| Resistor | 6 | resistor | 3.3 | kΩ | ±10% | 1/4w |
| Resistor | 1, 3, 14, 29-31, 38, 39, 40 | resistor | 4.7 | kΩ | ±10% | 1/4w |
| Resistor | 4, 48 | resistor | 5.6 | kΩ | ±10% | 1/4w |
| Resistor | 9, 10, 35 | resistor | 10 | kΩ | ±10% | 1/4w |
| Resistor | 51 | resistor | 12 | kΩ | ±10% | 1/4w |
| Resistor | 11, 18 | resistor | 15 | kΩ | ±10% | 1/4w |
| Resistor | 7, 52 | resistor | 22 | kΩ | ±10% | 1/4w |
| Resistor | 43, 47 | resistor | 27 | kΩ | ±10% | 1/4w |
| Resistor | 32, 42 | resistor | 33 | kΩ | ±10% | 1/4w |
| Resistor | 50 | resistor | 39 | kΩ | ±10% | 1/4w |
| Resistor | 2, 36, 37, 46 | resistor | 47 | kΩ | ±10% | 1/4w |
| Resistor | 22 | resistor | 470 | kΩ | ±10% | 1/4w |
| Resistor | 23, 24 | resistor | 1.3 | MΩ | ±10% | 1/4w |
| Resistor | 25 | resistor | 3.6 | MΩ | ±10% | 1/4w |
| Resistor | 26 | thermistor | ||||
| Capacitor | 46 | dipped mica | 100 | pf | ±10% | 500v |
| Capacitor | 15, 27, 31, 52 | mylar | 0.001 | μf | ±20% | 500v |
| Capacitor | 4 | mylar | 0.0047 | μf | ±20% | 500v |
| Capacitor | 1, 9, 12, 17, 22, 33, 34 | mylar | 0.01 | μf | ±20% | 500v |
| Capacitor | 24, 28, 29, 30, 39 | mylar | 0.022 | μf | ±20% | 500v |
| Capacitor | 3, 25, 26, 48, 50 | mylar | 0.047 | μf | ±20% | 500v |
| Capacitor | 23, 32, 37, 43, 45 | mylar | 0.1 | μf | ±20% | 500v |
| Capacitor | 5, 6, 7, 10, 14, 21 | electrolytic | 1 | μf | 16v | |
| Capacitor | 11 | electrolytic | 2.2 | μf | 16v | |
| Capacitor | 2, 16, 19, 20, 31, 36 | electrolytic | 10 | μf | 16v | |
| Capacitor | 8, 35 | electrolytic | 22 | μf | 16v | |
| Capacitor | 40 | electrolytic | 33 | μf | 16v | |
| Capacitor | 4, 18, 38, 42, 49 | electrolytic | 100 | μf | 16v | |
| Capacitor | 13, 41, 44 | electrolytic | 220 | μf | 16v | |
| Variable Resistor | 3, 4 | vr-variable resistor | 10 | kΩ | tr-11r | |
| Variable Resistor | 1, 5 | vr-variable resistor | 1 | MΩ | v160krz-1 | |
| Variable Resistor | 2 | vr-variable resistor | 2 | MΩ | v160krz-1 |
