FT-101B: REG CAL Unit BOM
Lista de componentes de la unidad de regulación y calibración (REG CAL) del Yaesu FT-101B
Componentes de la sección.

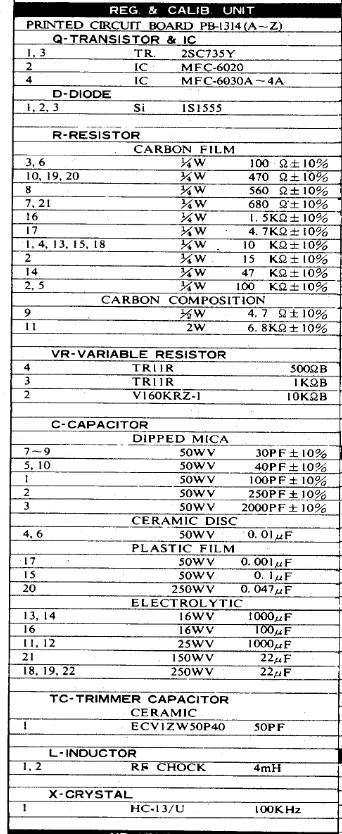

Vista del manual, sección REG CAL (PB-1314(A-Z))
PCB: PB-1314(A-Z)
| Componente | PN | Valor | Unidad | Tol. | Rating | |
|---|---|---|---|---|---|---|
| Transistor/FET | 1, 3, 17 | transistor | 2sc1815 | |||
| Transistor/FET | 2 | ic | mfc6020 | |||
| Transistor/FET | 4 | ic | mfc6030a-4a | |||
| Resistor | 3, 6 | carbon film | 100 | Ω | ±10% | 1/4w |
| Resistor | 10, 19, 20 | carbon film | 470 | Ω | ±10% | 1/4w |
| Resistor | 8 | carbon film | 560 | Ω | ±10% | 1/4w |
| Resistor | 7, 21 | carbon film | 680 | Ω | ±10% | 1/4w |
| Resistor | 16 | carbon film | 1.5 | kΩ | ±10% | 1/4w |
| Resistor | 17 | carbon film | 4.7 | kΩ | ±10% | 1/4w |
| Resistor | 1, 13, 15, 18 | carbon film | 10 | kΩ | ±10% | 1/4w |
| Resistor | 2 | carbon film | 15 | kΩ | ±10% | 1/4w |
| Resistor | 14 | carbon film | 47 | kΩ | ±10% | 1/4w |
| Resistor | 2, 5 | carbon film | 100 | kΩ | ±10% | 1/4w |
| Resistor | 9 | carbon composition | 4.7 | Ω | ±10% | 2w |
| Resistor | 11 | carbon composition | 6.8 | kΩ | ±10% | 2w |
| Capacitor | 7-9 | dipped mica | 30 | pf | ±10% | 500v |
| Capacitor | 5, 10 | dipped mica | 40 | pf | ±10% | 500v |
| Capacitor | 1 | dipped mica | 100 | pf | ±10% | 500v |
| Capacitor | 2 | dipped mica | 250 | pf | ±10% | 500v |
| Capacitor | 3 | dipped mica | 2000 | pf | ±10% | 500v |
| Capacitor | 4, 6 | ceramic disc | 0.01 | μf | 50v | |
| Capacitor | 17 | plastic film | 0.001 | μf | 500v | |
| Capacitor | 15 | plastic film | 0.1 | μf | 500v | |
| Capacitor | 20 | plastic film | 0.047 | μf | 250v | |
| Capacitor | 13, 14 | electrolytic | 100 | μf | 16v | |
| Capacitor | 16 | electrolytic | 100 | μf | 16v | |
| Capacitor | 11, 12 | electrolytic | 100 | μf | 25v | |
| Capacitor | 21 | electrolytic | 2.2 | μf | 100v | |
| Capacitor | 18, 19, 22 | electrolytic | 22 | μf | 250v | |
| Variable Resistor | 4 | vr-variable resistor | 500 | Ω | tr11r | |
| Variable Resistor | 3 | vr-variable resistor | 1 | kΩ | tr11r | |
| Variable Resistor | 2 | vr-variable resistor | 10 | kΩ | v160kΩz-1 | |
| Trimmer Capacitor | 1 | ceramic | 30 | pf | lcvtzw30p40 | |
| Inductor | 1, 2 | inductor | 4 | mH |
