FT-101B: FIX Unit BOM
Lista de componentes da unidade de cristal fixo (FIX) do Yaesu FT-101B
Componentes da seção.

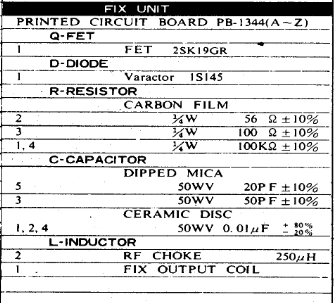

Vista do manual, seção FIX (PB-1344(A-Z))
PCB: PB-1344(A-Z)
| Componente | PN | Valor | Unidade | Tol. | Rating | |
|---|---|---|---|---|---|---|
| Transistor/FET | 1, 6 | TR | 2SC372Y | |||
| Transistor/FET | 4 | TR | 2SC784R | |||
| Transistor/FET | 2, 3, 5 | FET | 2SK19GR | |||
| Resistor | 4, 13 | carbon film | 100 | Ω | ±10% | ¼W |
| Resistor | 16 | carbon film | 330 | Ω | ±10% | ¼W |
| Resistor | 3 | carbon film | 560 | Ω | ±10% | ¼W |
| Resistor | 6, 8, 12, 19 | carbon film | 1 | KΩ | ±10% | ¼W |
| Resistor | 18 | carbon film | 1.5 | KΩ | ±10% | ¼W |
| Resistor | 15 | carbon film | 2.2 | KΩ | ±10% | ¼W |
| Resistor | 9, 11, 21, 22 | carbon film | 3.3 | KΩ | ±10% | ¼W |
| Resistor | 1 | carbon film | 4.7 | KΩ | ±10% | ¼W |
| Resistor | 23 | carbon film | 15 | KΩ | ±10% | ¼W |
| Resistor | 2, 10 | carbon film | 22 | KΩ | ±10% | ¼W |
| Resistor | 5, 7, 14, 17, 20 | carbon film | 100 | KΩ | ±10% | ¼W |
| Resistor | 1 | variable resistor | 10 | KΩ | ||
| Capacitor | 1 | dipped mica | 3 | pF | ±0.5 | 50V |
| Capacitor | 13 | dipped mica | 6 | pF | ±1 | 50V |
| Capacitor | 3, 9, 16, 18 | dipped mica | 30 | pF | ±10% | 50V |
| Capacitor | 12 | dipped mica | 50 | pF | ±10% | 50V |
| Capacitor | 11, 21, 22 | dipped mica | 100 | pF | ±10% | 50V |
| Capacitor | 2, 4, 8, 15 | dipped mica | 130 | pF | ±10% | 50V |
| Capacitor | 5, 10, 14, 17, 19, 20, 24, 25, 28, 29 | ceramic disc | 0.01 | µF | +80% -20% | 50V |
| Capacitor | 6, 26, 27 | ceramic disc | 0.047 | µF | +80% -20% | 50V |
| Capacitor | 7, 23 | electrolytic | 1 | µF | 16V | |
| Capacitor | 1-4 | trimmer capacitor (ceramic) | 50 | pF | ||
| Indutor | 2 | RF choke | 250 | µH | ||
| Indutor | 1, 3-5 | RF choke | 1 | mH |
