FT-101B: MIXER Unit BOM
Lista de componentes da unidade misturadora (MIXER) do Yaesu FT-101B
Componentes da seção.

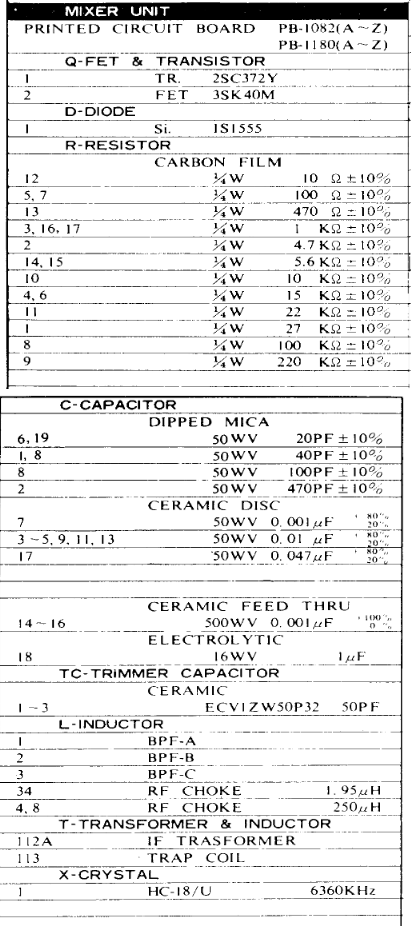

Vista do manual, seção MIXER (PB-1082 - 1180(A-Z))
PCB: PB-1082 - 1180(A-Z)
| Componente | PN | Valor | Unidade | Tol. | Rating | |
|---|---|---|---|---|---|---|
| Resistor | 12 | carbon film | 10 | Ω | ±10% | 1/4W |
| Resistor | 5, 7 | carbon film | 100 | Ω | ±10% | 1/4W |
| Resistor | 13 | carbon film | 470 | Ω | ±10% | 1/4W |
| Resistor | 3, 16, 17 | carbon film | 1 | kΩ | ±10% | 1/4W |
| Resistor | 2 | carbon film | 4.7 | kΩ | ±10% | 1/4W |
| Resistor | 14, 15 | carbon film | 5.6 | kΩ | ±10% | 1/4W |
| Resistor | 10 | carbon film | 10 | kΩ | ±10% | 1/4W |
| Resistor | 4, 6 | carbon film | 15 | kΩ | ±10% | 1/4W |
| Resistor | 11 | carbon film | 22 | kΩ | ±10% | 1/4W |
| Resistor | 1 | carbon film | 27 | kΩ | ±10% | 1/4W |
| Resistor | 8 | carbon film | 100 | kΩ | ±10% | 1/4W |
| Resistor | 9 | carbon film | 220 | kΩ | ±10% | 1/4W |
| Capacitor | 6, 19 | dipped mica | 20 | pF | ±10% | 50V |
| Capacitor | 1, 8 | dipped mica | 40 | pF | ±10% | 50V |
| Capacitor | 8 | dipped mica | 100 | pF | ±10% | 50V |
| Capacitor | 2 | dipped mica | 470 | pF | ±10% | 50V |
| Capacitor | 7 | ceramic disc | 0.001 | μF | ±20% | 50V |
| Capacitor | 3–5, 9, 11, 13 | ceramic disc | 0.01 | μF | ±20% | 50V |
| Capacitor | 17 | ceramic disc | 0.047 | μF | ±20% | 50V |
