FT-101B: REG CAL Unit BOM

Lista de componentes da unidade de regulação e calibração (REG CAL) do Yaesu FT-101B

Radio
🌍 Traduções: EN, ES
Componentes da seção.

PCB: PB-1314(A-Z)

Componente PN Valor Unidade Tol. Rating
Transistor/FET 1, 3, 17 transistor 2sc1815
Transistor/FET 2 ic mfc6020
Transistor/FET 4 ic mfc6030a-4a
Resistor 3, 6 carbon film 100 Ω ±10% 1/4w
Resistor 10, 19, 20 carbon film 470 Ω ±10% 1/4w
Resistor 8 carbon film 560 Ω ±10% 1/4w
Resistor 7, 21 carbon film 680 Ω ±10% 1/4w
Resistor 16 carbon film 1.5 kΩ ±10% 1/4w
Resistor 17 carbon film 4.7 kΩ ±10% 1/4w
Resistor 1, 13, 15, 18 carbon film 10 kΩ ±10% 1/4w
Resistor 2 carbon film 15 kΩ ±10% 1/4w
Resistor 14 carbon film 47 kΩ ±10% 1/4w
Resistor 2, 5 carbon film 100 kΩ ±10% 1/4w
Resistor 9 carbon composition 4.7 Ω ±10% 2w
Resistor 11 carbon composition 6.8 kΩ ±10% 2w
Capacitor 7-9 dipped mica 30 pf ±10% 500v
Capacitor 5, 10 dipped mica 40 pf ±10% 500v
Capacitor 1 dipped mica 100 pf ±10% 500v
Capacitor 2 dipped mica 250 pf ±10% 500v
Capacitor 3 dipped mica 2000 pf ±10% 500v
Capacitor 4, 6 ceramic disc 0.01 μf 50v
Capacitor 17 plastic film 0.001 μf 500v
Capacitor 15 plastic film 0.1 μf 500v
Capacitor 20 plastic film 0.047 μf 250v
Capacitor 13, 14 electrolytic 100 μf 16v
Capacitor 16 electrolytic 100 μf 16v
Capacitor 11, 12 electrolytic 100 μf 25v
Capacitor 21 electrolytic 2.2 μf 100v
Capacitor 18, 19, 22 electrolytic 22 μf 250v
Variable Resistor 4 vr-variable resistor 500 Ω tr11r
Variable Resistor 3 vr-variable resistor 1 kΩ tr11r
Variable Resistor 2 vr-variable resistor 10 kΩ v160kΩz-1
Trimmer Capacitor 1 ceramic 30 pf lcvtzw30p40
Indutor 1, 2 inductor 4 mH

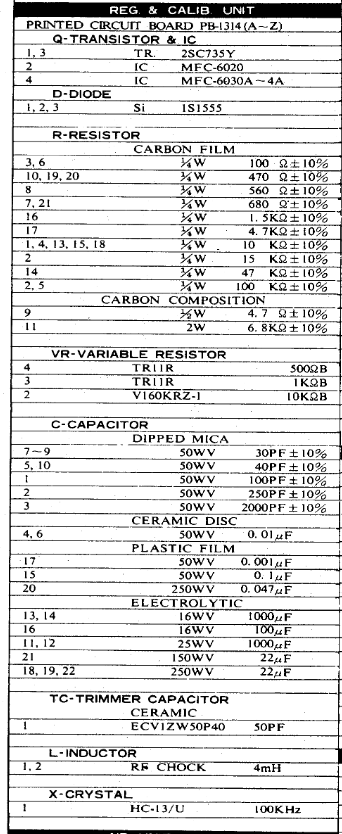

REG CAL Unit
Vista do manual, seção REG CAL (PB-1314(A-Z))
